Category:
Fiber uretero-renoscopy

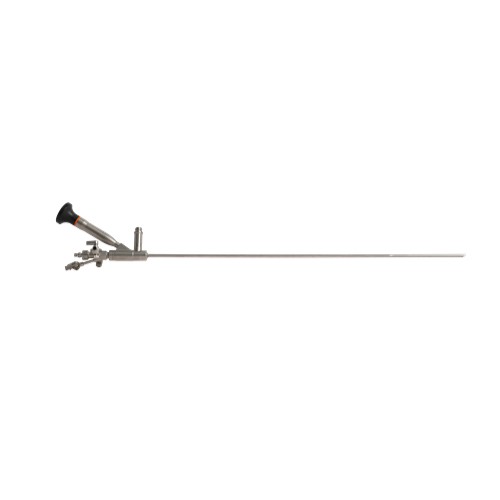

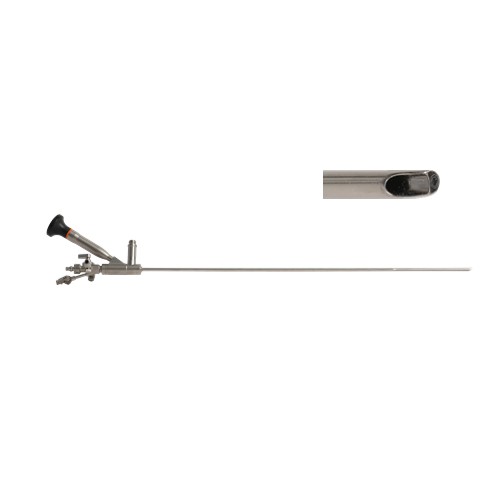

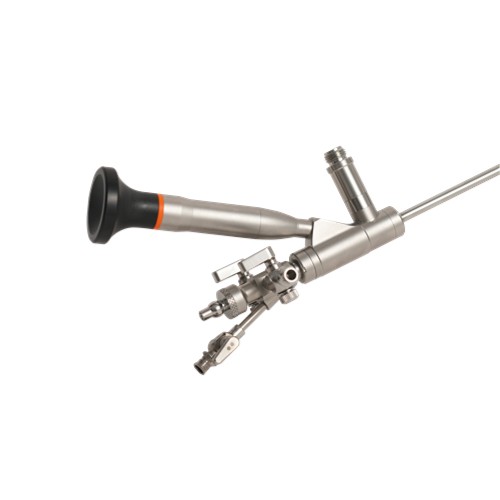

Product description:Rigid Fiber Uretero-renoscope
Product model
Field of view
Diameter
Channel
Working length
Remark
WY-XA01
84°
8/9.8Fr
5Fr
430mm
For adult
WY-XA02
84°
8/9.8Fr
5F r
315mm
WY-XC01
84°
6/7.5Fr
4Fr
430mm
For children
WY-XC02
84°
6/7.5Fr
4Fr
315mm
WY-XS01
70°
4.5/6.5Fr
3Fr
430mm
For seminal vesicle
WY-XS02
70°
4.5/6.5Fr
3Fr
315mm
Characteristic:
》 Semi-rigid integrated endoscope, Medical stainless steel(or titanium alloy) used for the outer tube ensures the sturdy structure of the tube , allow the endoscope to bend slightly and deliver good resilience.
》 Integrated design of the endoscope and flush adapter, sealing by laser welding ensures zero entry of water vapour and other vapour during cleaning and disinfection.
》 Built-in Dual-layer sealer device and built-in valve with automatic closing ensures that no water leakage will occur during the removal of the device and guide wire.
》 The tip lens is sealed with sapphire, which is not easy to be worn.
》 The ocular lens is a columnar optical mirror, designed to prevent spherical deformation, providing vivid image without causing distortion or deformation. The ocular lens connector can be connected with interfaces of imaging equipment from multiple brands, providing high-level compatibility.
》 Renal foreign body forceps and biopsy forceps with a diameter of 5Fr/4Fr/3Fr and an effective length of 600 mm are optional.
